ERGONOMICS OF HOSE REEL ROLL-OUT AND REWIND

An operator of a service vehicle will visit a number of different locations during the course of a shift and will perform a range of repetitive service tasks. The most common task is refuelling, and the link between the service vehicle and the equipment to be refuelled is the fuel hose, and an operator might be required to access the hose reel up to 50 times per day.

THE CHALLENGE OF HANDLING HEAVY HOSES

Because refuelling volumes are large, they need high capacity delivery systems and fuel hoses are often heavy 1 or 2-inch hoses that may be 15 metres or more in length. The challenge of handling heavy hoses increases when working in hilly terrain or on soft surfaces that are common on mines sites. 

The constant need to roll-out and rewind the hose reels present a potential ergonomic risk to the operator of repetitive strain injury. The process is further exacerbated by the need to keep the discharge nozzle clean to prevent contaminants entering the fuel tank. 

To minimise the risk of repetitive strain injuries, Shermac actively optimises operator ergonomics on all its vehicles.

ERGONOMIC HEIGHT FOR EASIER HANDLING

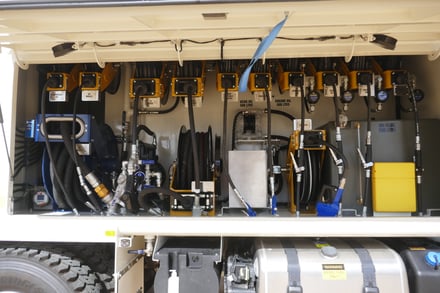

While many service vehicles have hose reel access at shoulder height, Shermac position the hose reel lower on the vehicle at hip height, offering a more ergonomic height for handling and reducing the risk of shoulder injuries. 

Lightweight hoses might have a spring rewind system, but this is not suitable for fuel hoses as the spring tension required to rewind a long, heavy hose increases the effort required for an operator to pull out.

POWERED HOSE REWIND

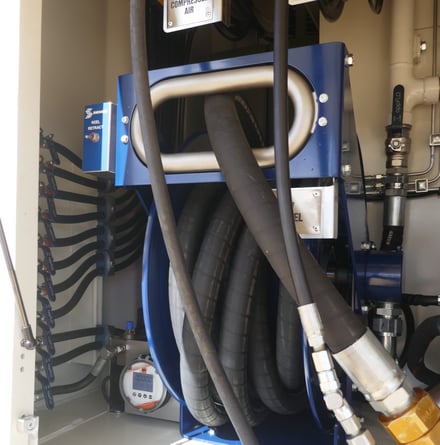

The typical Shermac fuel hose has a manual roll-out and hydraulic or pneumatic assisted rewind. On roll-out, the hose clutch is disengaged and the reel free-wheels for easy delivery, and the powered rewind does all the rewind work. 

Once refuelling is finished, the operator has to walk back to the service vehicle holding the nozzle-end of the hose off the ground to prevent it getting dirty and leaving a loop of hose on the ground. Once at the vehicle, the operator activates the rewind switch and manages the rewind while all the time keeping the nozzle off the ground and clean. 

While this is an ergonomic solution, there is a better option available from Shermac. Once refuelling is finished, the operator can activate the rewind via a remote rewind switch on a wrist-band and simply walks the hose reel back to the service vehicle. 

CONTINUOUS IMPROVEMENT IS PART OF SHERMAC DNA

Continuous improvement is part of Shermac DNA, and future fuel delivery developments potentially include the use of fuel booms with short flexible hose lengths to further improve operator ergonomics and optimise productivity. 

These examples illustrate Shermac’s commitment to engineering safety in and hazards out and to maximise operator wellbeing, vehicle uptime and productivity with predictable lifetime cost. 
